[USER] Setting up the Linksys SPA-122 ATA device on Bridge Mode
Article #4741

This article will guide you on how to set up the Linksys SPA-122 ATA device on bridge mode.

NOTE:  This procedure is used to troubleshoot the lack of internet connection on ATA devices.

To do this, follow the steps below.

i.   Determine the IP address
ii.  Access the Graphical User Interface (GUI)
iii. Set up device on bridge mode

Determine the IP address of your Linksys SPA-122 ATA device.

Step 1:
Plug in an analog phone to the Phone 1 or Phone 2 port. Make sure it has an active DigitalLine.

Step 2:
Dial **** and you will hear the Cisco Configuration Menu.

Step 3:
Dial 110# to obtain the IP address of your Linksys ATA.

Access the Linksys SPA-122 ATA Graphical User Interface (GUI).

Step 1:
Open a browser window on your computer.

Step 2:
Enter the IP address into your browser.

Step 3:
This should open up the configuration window. If you cannot access the configuration window, do the following:

• Recheck your IP address.
• Plug your PC or laptop directly into the ethernet port of the ATA and type in the IP address.
• Go back to the IVR and dial **** from the phone connected to your ATA, then dial 7932#. Dial 1 to turn on the web interface.

NOTE:  The default username is either admin or cisco. The default password is either blank, 72227, admin, or cisco. If you are not able to access the GUI, the device is most likely locked.

Set up device on bridge mode

Step 1:
Click Network Setup.

Actions in the photo are explained in the text.

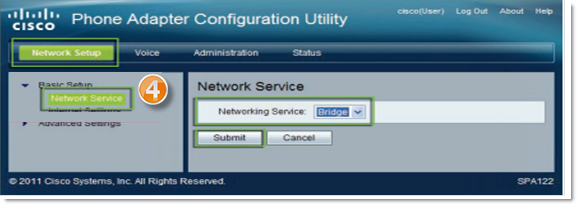

Step 2:
Under the Basic Setup menu, click the Network Service sub menu.

Actions in the photo are explained in the text.

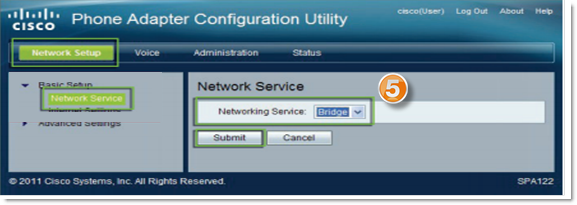

Step 3:
Under Network Service option, select the Bridge option in the drop down menu.

Actions in the photo are explained in the text.

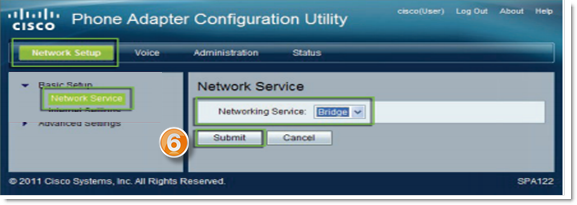

Step 4:
Click the Submit button to save the changes.

Actions in the photo are explained in the text.

Step 5:
As best practiced, please do a sequence power cycle on all the devices — Linksys SPA-122 ATA and the devices involved.

You have now set up your Linksys SPA-122 ATA device on bridge mode.
